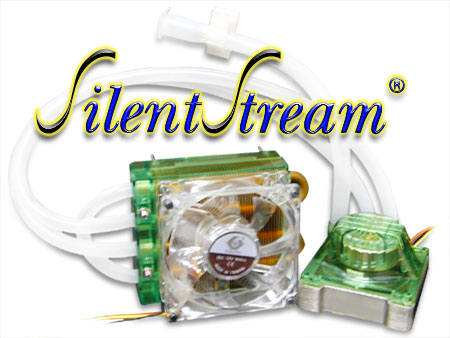

| Silent Stream |
|
|
|
Features:
- Ultra Compact Size-Excellrnt Value Watre
Cooling Kit
- Universal Model For Intel P4 Prescott, Intel
P4-478, AMD Athlon 64 XP3400+, AMD Athlon
XP3200+ CPU
- Water Pre-Filled
- Extra User Friendly Installation Design
- Compatible With Any kind Of PC Case That
Has Fitting Position For 80mm Case Fan
- Garantee Of No Water Leakage
- Compatible with ATX cases that have limied
inner space
- The water level can be verified from outside
of the case
(if the case is equipped with a clear side
panel window)
Silent
Stream User's Manual (1.3 MB)
Quick Installation |
Pro Installation |
|
|
|
| SPECIFICATIONS |
| Water
Block |
| Dimension |
71 x 68.5 x 18.4 mm |
| Material |
Aluminum Alloy 6063T5 Copper 1100 |
| Weight |
330g / without water |
| |
| Water
Tube |
| Material |
Silicone Heat Cure Elastomer |
| |
| Copper
Radiator |
| Dimension |
108 x 80 x 25 mm |
| Material |
COPPER 1100 |
| |
| Motor
(In Silent Stream) |
| Rated Voltage |
12 V |
| Rated Current |
0.45A |
| Input Power |
5.4W |
| Motor Speed |
3400±15 % rpm |
| Water flow |
32 L/hr |
| Connector |
3pin |
| Noise |
17dBA |
| Bearing type |
Steel Ball Bearing |
| Life Span |
50,000 Hours |
| Weight |
60 g |
| |
| Radiator
Fan |
| Rated Voltage |
12 V |
| Rated Current |
0.17A |
| Input Power |
2.0W |
| Bearing type |
Ball or NCB Bearing |
| Fan Speed |
3000±15 % RPM |
| Air Delivery |
38.88± 15 % CFM |
| Noise Level |
29± 2dBA |
| Fan Safety |
CE, UL Approved |
| RPM Signal output |
Yes |
| Silent
Stream total weight (contain water) 750g |
|
|
|
