| SPECIFICATIONS |
| Fan( Per Fan ) |
| Operation Voltage |
DC 10.8 ~ 13.2 V |
| Rated Voltage |
DC 12 V |
| Rated Current |
0.16 A MAX. |
| Input Power |
1.9 Watt MAX. |
| Bearing System |
Nanometer Ceramic Bearing |
| Fan Speed |
2700±15 % RPM |
| Air Delivery |
22.58± 15 % CFM |
| Noise Level |
24.05± 2dB(A) |
| Fan Safety |
UL Approved:CLASS A |
| Fan with RPM signal output |
Yes |
| |
| Heatsink |

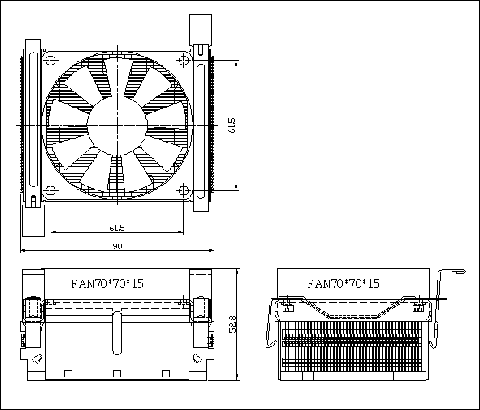

| Dimension |
90.2 x 69.1 x 38 mm |
| Material |
Aluminum fins with Copper Based |
| |
| Clip |
| Material |
Steel SK7 ( Quality Material Clip ) |
| Thermal Interface |
High thermal conductive interface |
| Material |
GW 101 |
| Connector |
Molex 2510 / 2695 3Pin |
| Total Weight |
412g |
| APPILATION |
|
Pentium 4-478 2.8 GHz
Nanometer Ceramic Bearing: longer fan life,lower fan
noise,anti-shock
|
|
|
|
