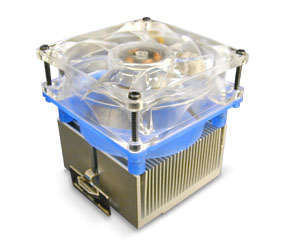

| FSP82 |
|
|
|
Specifications
| Fan(
Per Fan ) |
| Operation
Voltage |
DC
7 ~ 13.2 V |
| Rated
Voltage |
DC
12V |
| Input
Current |
0.21A
MAX. |
| Input
Power |
2.52W
MAX. |
| Bearing
System |
One
Ball One Sleeve Bearing |
| Fan
Speed |
3000
RPM |
|
Air Flow |
38.88
CFM |
| Noise
Level |
32.31
dB(A) |
| Fan
Safety |
UL
Approved |
| Fan
with RPM signal output |
Yes |
| Heatsink |
| Dimension |
70
x 68 x 36.5 mm |
| Material
|
Aluminum
Alloy 6063T5 |
| Mounting
Kit |
| Retention
Clip |
Steel
SK7 ( Quality Material Clip ) |
| Thermal
Interface |
High
thermal conductive interface |
| Material |
GW103 |
| Connector |
Molex
2510 / 2695 3Pin |

|
|
|
