| FHP08 |
|
|
| Specifications |
| Fan |
| Operation
Voltage |
DC
10.2V ~ 13.8V |
| Rated
Voltage |
DC
12V |
| Rated
Current |
DC
0.13A |
| Input
Power |
1.56WATT |
| Bearing
System |
Ball
Bearing |
| Fan
Speed |
6000
RPM+/- 15% |
| Air
Delivery |
12.21CFM |
| Noise
Level |
32
dBa |
| MTBF(life) |
40000
hours /40°C |
| Thermal
Resistance |
0.73°C
/ W |
| Fan
Safety |
CE,
UL, TUV,CSA Approved |
| Fan
with RPM signal output |
Yes |

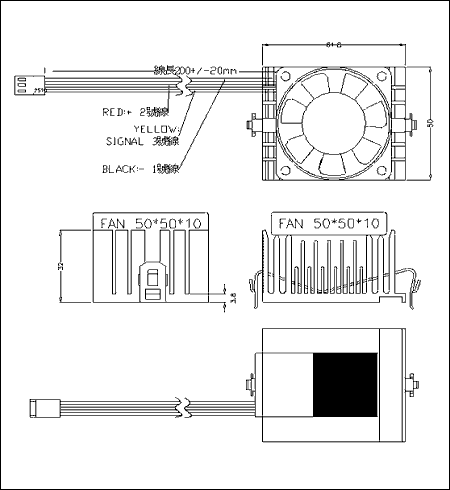

| Heatsink |
| Dimension
|
61.8mm
x 50mm x32.5mm |
| Material
|
Anodized
Aluminum Alloy 6063 |
| Clip
|
| Material
|
Steel
SK7 (Quality Metal clip) |
| Thermal
Interface |
High
thermal conductive interface |
| Material |
Thermal
grease |
| Thermal
Conductivity |
0.0015K
cal/cm/sec/°C |
| Connector |
Molex
2510 / 2695 3 pin |
| Total
Weight |
105g
|
| Application
|
| Supports
AMD K6-2 550MHz, Intel Celeron & PIII FCPGA 800MHz VIA Cyrix and
VIA IDT CPU. |
|
|
