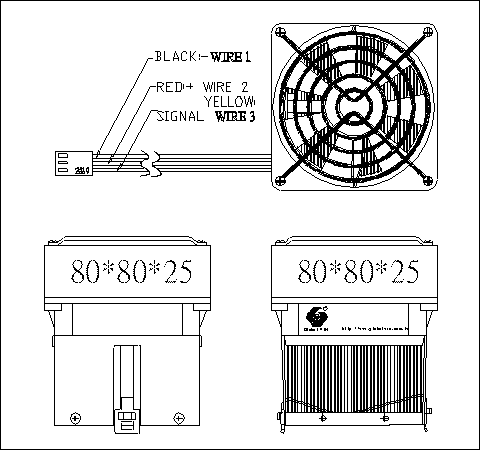

CAK488T

Specifications

Fan ( Per Fan )
Sensor Temperature 30°C 38°C
Operation Voltage DC 10.2 ~ 13.8 V
Rated Voltage DC 12V
Input Current 0.3A MAX. 0.4A MAX.
Input Power 3.6W MAX. 4.8W MAX.
Bearing System One Ball One Sleeve Bearing
Fan Speed(RPM) 2800±15 % 4000±15 %
Max. Air Delivery(CFM) 38± 15 % 55.2± 15 %
Noise Level 25± 2dBA 38.2± 2dBA
Fan Safety UL Approved
Fan with RPM signal output Yes
Heatsink
Dimension 70 x 66 x 40 mm
Material COPPER 1100
Mounting Kit
Retention Clip Steel SK7 ( Quality Material Clip )
Thermal Interface High thermal conductive interface
Material GW101/GW103
Connector Molex 2510 / 2695 3Pin
